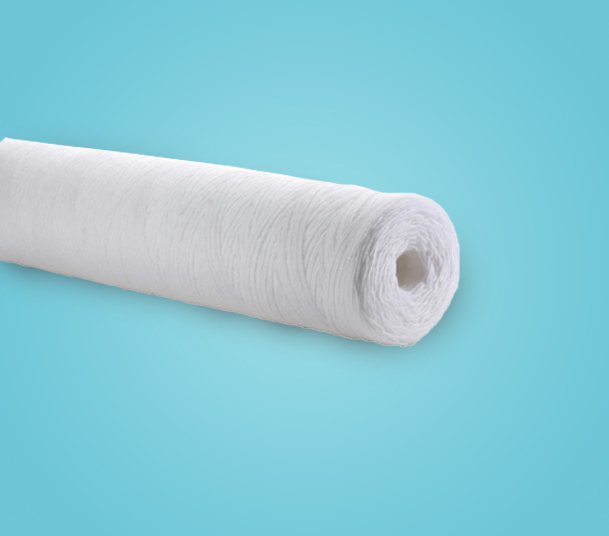

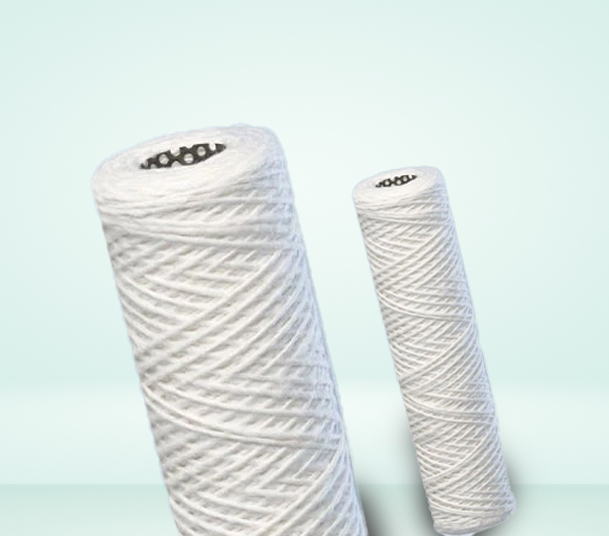

TRINITY Micro Wound Filters

TRINITY

Micro Wound Filters

are designed and manufactured using the latest winding technology. The

Micro String Filters

comprises a dense layer on the inner side and a coarse layer at the outer end. Due to this, Micro String Filters produce a superior depth filter with increased capacity, longer service life and high performance that reduce the effective cost.

Micro STRING Filters have high structural integrity with huge void volume, giving a lower pressure drop. Micro Wound Filters has much-improved dirt holding capacity and efficiency compared to conventional wound filters.

Features & Benefits :

Continuous Filament ensures no media migration
True grade density by new winding technology
High dirt holding capacity
High void to solid ratio for low pressure drop.
High structural integrity
Media/ core can be easily incinerated with no hazardous volatiles for environment friendly disposal.

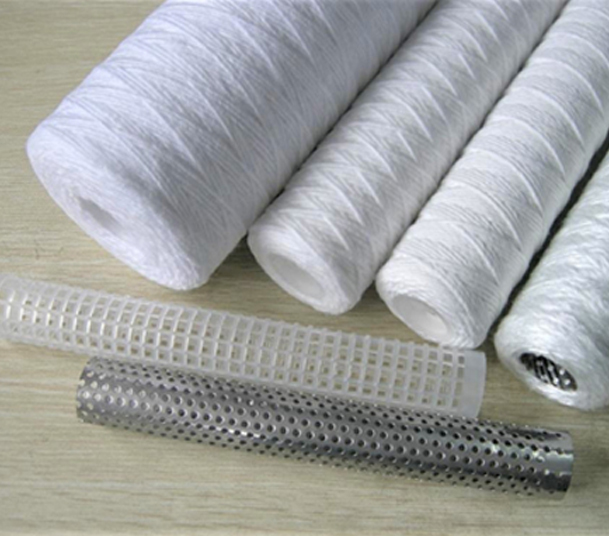

Media	Polypropylene, Cotton & glass fiber
Core	Polypropylene/ SS 304 / SS 316
End Caps	Polypropylene (PP)
Removal Ratings	0.5, 1, 3, 5, 10, 25, 50, 100 micron
O Rings / Gaskets(for SOE):	Buna N, EPDM, Silicone, Viton

Filter Specification:

Nominal Lengths	9.75, 10, 20, 30, 40 inches
Diameter: ID/OD	1.1 ” (28 mm) / 2.5” (63 mm)
End connections	DOE (standard) / SOE (optional)
Max operating temperature	80OC - Polypropylene 120OC - Cotton with SS core 400OC - Heat purified glass fiber with SS core
Recommended Change out differential pressure	35 PSID
