Dual Flow bag filter Elements

Dual Flow bag filter Elements
Dual Flow bag filter Elements
Dual Flow bag filter Elements

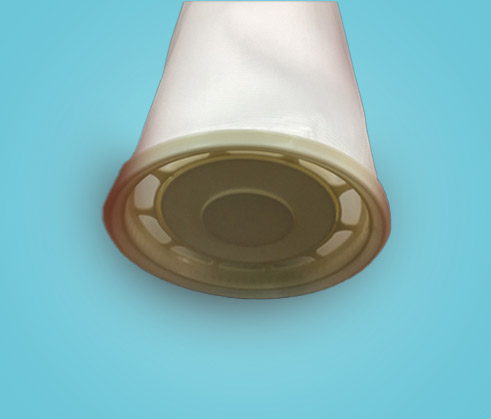

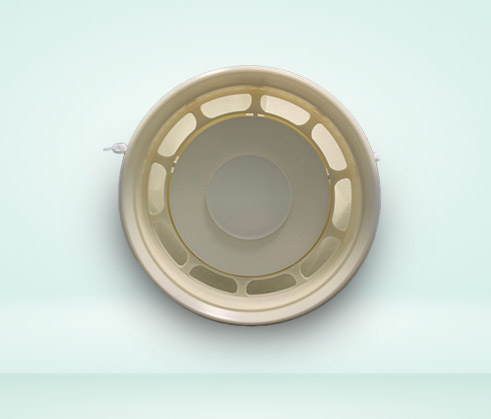

Trinity Dual Flow Bag Filter has a unique design which is the smart replacement for conventional bag filters. Dual Flow Bag Filter comprises two felt cylinders welded from the top and bottom of the filter. The felt cylinders are manufactured from the graded porosity media structure. The design increases the filter surface area by 65%, which leads to better filtration and longer service life.

The Dual flow bag Filter comprises a support basket that helps the bag to stay intact in the most demanding condition. It eliminates stretching of media hence ensuring the filter integrity

    Features & Benefits
  •  High Flow Rate, Low Pressure Drop
  •  High dirt loading capacity and longer service life
  •  Additional 65% filtration area by unique flowing route
  •  Positive seal tightness to prevent bypass
  •  All welded and calendared structured
  •  Reduces flux for improved efficiency
  •  FDA Compliant to CFR 21
  •  Silicone free

Filter Specification
Material Of Construction Polypropylene Polyester
Micron Rating 1,5,10,25,50,100,200 Micron
Size of filter bag Size 1 (7” Dia X 14.3” Length) Size 2 (7” Dia X 27.8” Length)
Recommended Operating Conditions
Operating Conditions Polypropylene Polyester
Maximum Operating Temp0C 80 OC 135 OC
Recommended Maximum Flow Rate (LPM ) 280 for Size 1 bag filter (7” Dia X 14.3” Length)
570 for Size 2 bag filter(7” Dia X 27.8” Length)
Maximum Pressure Drop Allowed 35 PSID @ 68° F (2.4 bar @ 20 °C)
Recommended Change Out Differential Pressure 1.5 kg/cm2 (21 PSI)
