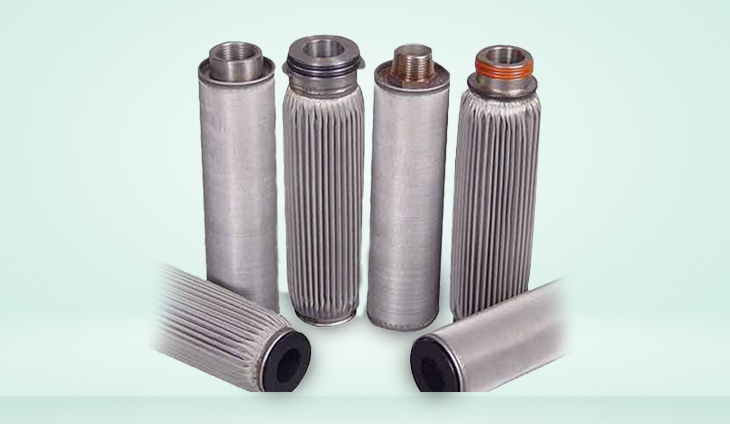

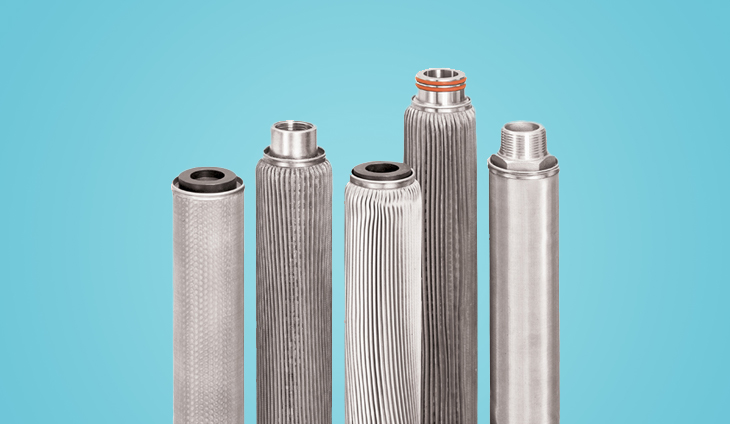

TRINITY Meta-PORE Stainless Steel Filter Cartridges are the perfect choice for high temperature (230°C) & High viscosity applications. Produced with 304L or 316L sintered stainless steel mesh / Sintered Powder / pleated mesh cartridge offers excellent reliability for critical applications. The filters are produced in cylindrical or pleated media for extended cartridge life and more dirt holding capacity. All welded construction gives Meta-Pore cartridges the highest mechanical strength. An optional pleat protector is available to prevent denting and damage to the pleated surface.
Features & Benefits :
- All-stainless steel construction
- Sintered mesh screen/sintered powder media Pleated for higher dirt holding capacity while Cylindrical media available for economic usage.
- Fixed pore size to ensure consistent reproducible performance
- High Corrosion resistant
- High differential pressure resistant. Can be repeatedly back washed
- High-temperature capabilities
- Repeatedly cleanable
- No unloading or shedding
- Absolute rated for reliable performance
- FDA-Compliant materials per 21 CFR
Filter Specification:
| Media |
SS 304L, SS 316L |
| Media MOC |
Porous Sintered Powder
Sintered Cylindrical Mesh
Sintered Pleated Mesh |
| Removal Ratings |
1, 3, 5, 10, 20, 50, 100 micron |
Dimensions
| Nominal Lengths |
9.75, 10, 20, 30, 40 inches |
| Diameter: ID/OD |
1” (25.4 mm) / 2.7” (69 mm) |
| Max operating temperature |
250OC |
| Max operating temperature |
250OC |
| Max Change Out Differential Pressure |
60 PSID (3.5 bar) |
| Recommended Change out differential pressure |
35 PSID (2.5 bar) |
Applications :
- Catalyst recovery in Petrochemical & Chemical
- Polymer Filtration
- Gas Filtration
- Steam filtration
- Compressed Air
- Oil Filtration
- Fuel & Hydraulic Oil
- Paints
- Waste Water
- Monomer Filtration
