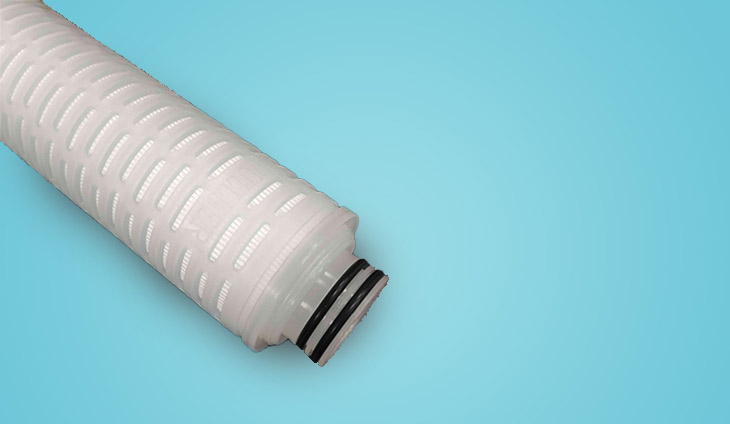

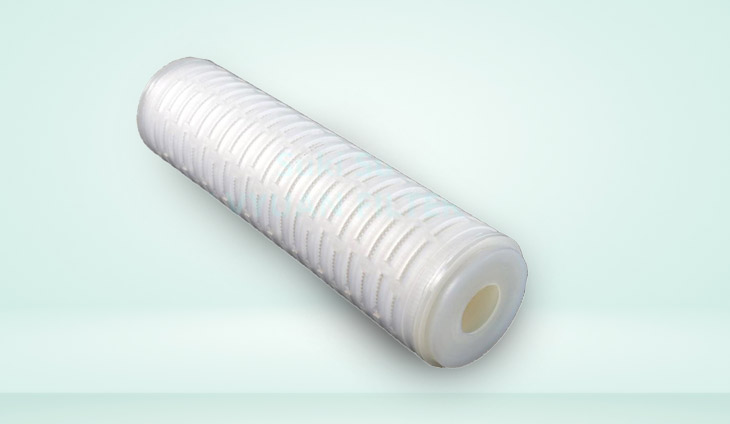

Steri-PRO PE series Polyethersulfone Sterilizing grade filters are manufactured to conform with the stringent quality standards required by filters that come in contact with biological, pharmaceuticals and other critical processes. The filter cartridges conform to Toxicity tests, meet the requirement of USP 29 Biological test for Plastics, and are manufactured using components that comply with CFR 21 regulations. The Filters are supported by a validation guide prepared specifically for manufacturers requiring product documentation as part of their qualification process.
Filter Specification
| Media |
0.2 um Double layer Asymmetric PES membrane |
| Micron Rating |
0.45, 0.6, 0.8 and 1.0 micron |
| Support Media |
Polypropylene |
| Cage/Core/End Caps |
Polypropylene |
| 'O'Rings / Gaskets |
Buna N, EPDM, Silicone, Viton |
| Internal Support Ring |
Stainless Steel |
Dimensions
| Nominal lengths |
9.75, 10, 20, 30, 40 inches |
| Outside Diameter |
2.7 inches (69mm) |
| Inside Diameter |
1 inch (25.4mm) |
Operating Conditions
| Max.Diff.Pressure |
4 Bar at 20°C/2 Bar at 60°C |
| Sterilization |
Autoclave 30 minutes at 126°C. Steam 30 Mins at 121°C |
Features & Benefits
- Pharmaceuticals
- Biological
- Solvents
- Ophthalmic Solutions
- LVP/SVP/Sterile API
- Vaccines
- High Purity Chemicals
- High Purity Water
- Wines
