A ZETA PLUS FILTER ALTERNATIVE (PHARMACEUTICAL APPLICATIONS)

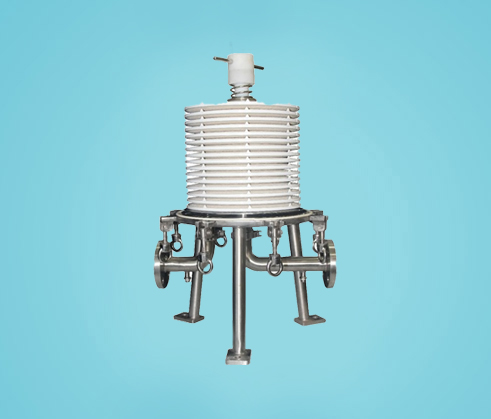

ZETA PLUS FILTER
LENTICULAR
LENTICULAR

TRINITY

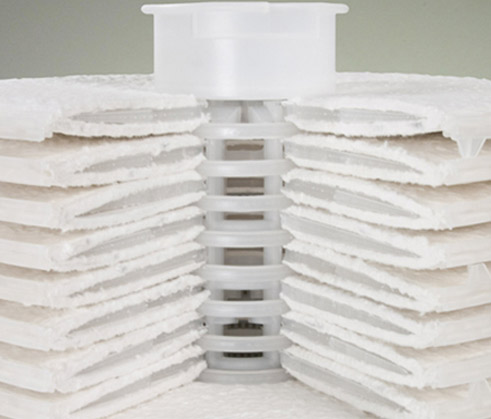

Charge Plus Lenticular Filters

positively Charged Cellulose depth filters, are formulated to meet the performance demands of biopharmaceutical and biotech applications. The Charge Plus Lenticular Filters media utilizes mechanical and electro-kinetic adsorptive capture mechanisms to remove particulate matter, micro-organisms, colloids, and pyrogen from critical process streams.
TRINITY

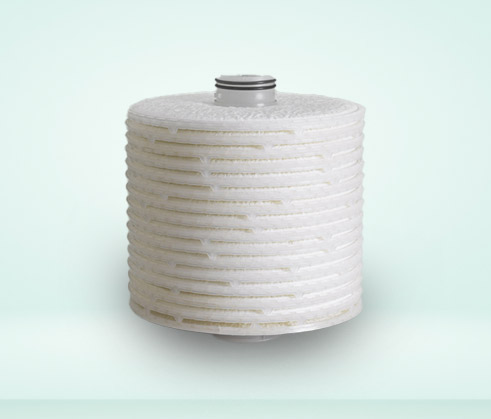

Charge Plus Lenticular Filter Cartridges

can provide on-site trial assistance to validate the performance of these Charge Plus Lenticular Filter Cartridges in new processes and applications. The Pharmaceutical Grade filter modules are manufactured to procedures described in a Drug Master File (DMF) on record at the National Center for Drugs and Biologics.
Filter Specification:
Media Cellulose Fibre with Inorganic Filters aids
Cartridge bands Stainless Steel
End Caps Polypropylene (PP)
O Rings / Gaskets(for SOE) Ethylene propylene, Neoprene, Nitrile, Silicone, Viton
Grade 10, 11, 12, 13, 14, 15, 16, 17
Recommended Flow rate 0.5 to 1 GPM/ft2
Dimensions
Nominal Lengths 20, 40 & 60 inches
Diameter: ID/OD 3” (76 mm) / 6.5” (165 mm)
End Connections DOE (standard) / SOE (optional)
Max Operating Temperature 80OC
Max Change Out Differential Pressure 50 PSID (3.5 bar)
Recommended Change Out Differential Pressure 35 PSID (2.5 bar)
Applications:
  • Antibiotics
  • Cell separation
  • Blood products
  • Cough syrups
  • Large volume parenteral
  • Pre filtration of sterile membrane filters
  • Chromatography column protection
  • Post fermentation clarification
