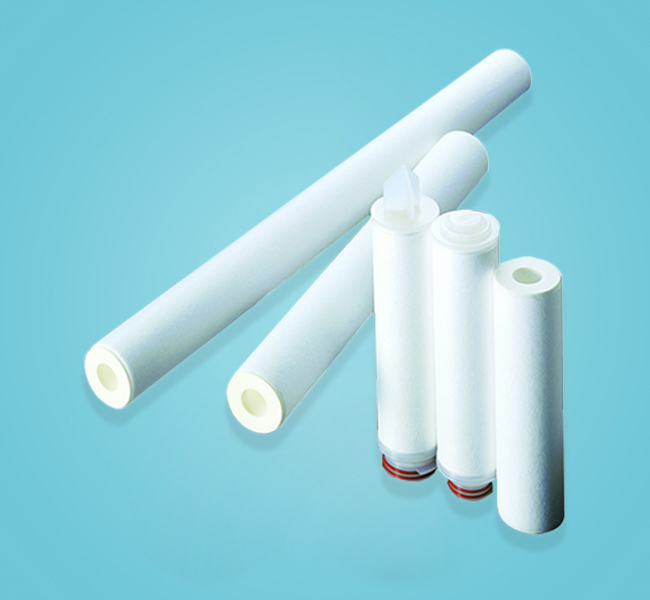

Pure GUARD Bi Component Fiber Filter Cartridges

SELF CLEANING FILTERS

TRINITY Pure-GUARD Bi-Component Thermally Bonded Filter Cartridges are manufactured using a unique technology using polyolefin thermally bonded bi-component fibers resulting in a rigid complex filter matrix. The unique fiber-to-fiber bond forms a very rigid, stable porosity matrix thereby eliminating the need for a support core. The patented construction of this filter cartridge provides consistent filtration and eliminates pore size variability and media migration. The rigid construction also provides a three dimensional fiber network that offers a high tolerance to differential pressures. This unique feature also prevents changes in the fiber matrix throughout the life of the filter providing for precise filtration and eliminating filter unloading.

Features:
  •  Rigid structure
  •  Consistent performance
  •  Absolute rating for better service life
  •  Coreless structure – Easy incineration and disposal
  •  Complex bonded filter matrix
Media Bi-component Fibers of Polyolefin
End Caps Polypropylene (PP)
Removal Ratings 1, 3, 5, 10, 25, 50, 75, 100,125, 150 & 200 micron
O Rings / Gaskets: Buna N, EPDM, Silicone, Viton
Filter Specification
Nominal Lengths 9.75, 19.5, 29.25, 39 inches
Diameter ID / OD 1.1” (28mm) / 2.5” (63 mm)
End connections DOE / SOE (SOE End connections available as special)
Max operating temperature 80 OC
Max Change Out Differential Pressure 50 PSID
Recommended Change out differential pressure 35 PSID
Applications:
  •  Pharmaceutical Pre filtration
  •  High Quality Paint, Resins & Ink
  •  CED / Top Coat in Automotive Plants
  •  Bottled Water/Blend water in Breweries
  •  Process / Rinse water
  •  Desalination / Pre RO
  •  Cathode Ray Tube / CD-DVD Manufacture
  •  Lens Coatings
  •  Printed Circuit Boards
