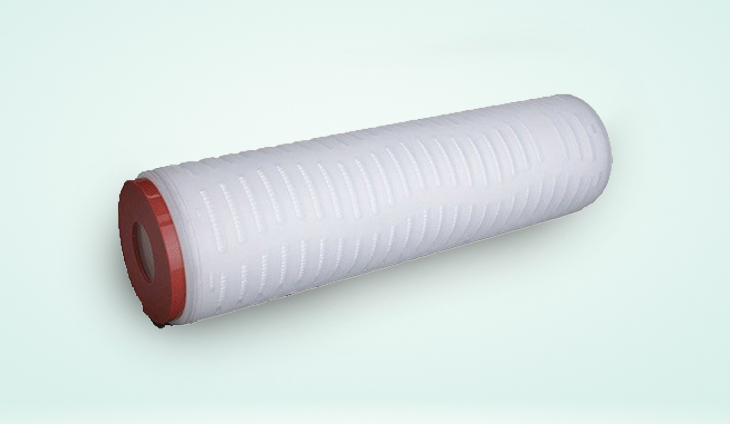

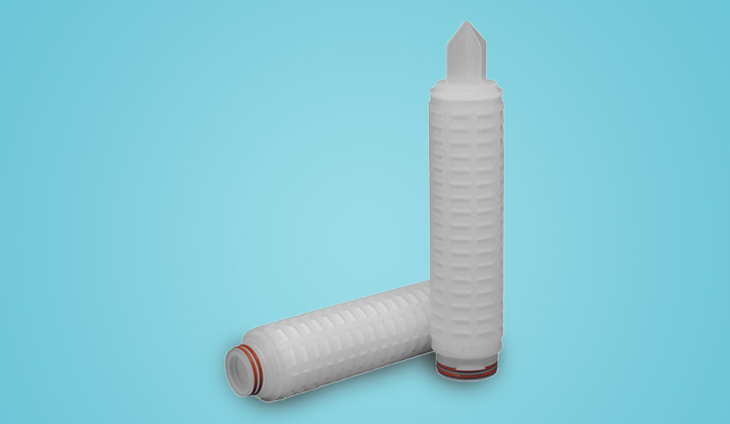

TRINITY Flow-MAX Pleated Filter Cartridges are designed to optimize the surface area of the PP media for higher flow rate, lower clean Delta P and longer Service life. The Filter provides more surface area due to its pleated design. Applications for these are available across food & beverages, pharmaceutical, semiconductor and other demanding process applications. All PP construction and gradient density micro-fiber media provide excellent removal efficiencies and high contaminant holding capacities. All materials used in this filter cartridge are CFR-21 complaint so, it is safe to use for food contact purposes.
Features & Benefits :
- Meets USP 24 Class VI biological test for plastics
- High Filtration Efficiency–99.9% (Beta 1000)
- Graded pore density graded density media for high dirt holding capacity
- Fixed pore construction, Eliminates unloading at maximum differential pressure
- Option of various Gasket/ ’O’-ring materials, Compatible with many fluids
- Pleated Glass Fibre media is ideal for retention of extremely small particles and colloidal materials.
- Economical & efficient filtration
Filter Specification:
| Media |
Polypropylene (PP) |
| Inner Core |
Polypropylene (PP) |
| End Caps |
Polypropylene (PP) |
| Cage |
Polypropylene (PP) |
| Removal Ratings |
0.2, 0.45, 1, 2.5, 5, 10, 20, 25, 40, 50, 100 micron |
| O Rings / Gaskets(for SOE) |
Buna N, EPDM, Silicone, Viton, Teflon Encapsulated Viton ‘O’ rings |
Dimensions
| Nominal Lengths |
9.75, 10, 20, 30, 40 inches |
| Diameter: ID/OD |
1.1” (28 mm) / 2.7” (70 mm) |
| End connections |
DOE (standard) / SOE (optional) |
| Max operating temperature |
80OC |
| Max Change Out Differential Pressure |
75 PSID (5.2 bar at 21OC); 40 PSID (2.8 bar at 80OC |
| Recommended Change out differential pressure |
35 PSID |
Applications :
- Pharmaceutical Pre filtration
- DI Water
- Process / Rinse water
- Fine Chemicals
- Solvent and gas pre filtration
- Lens Coatings
- DE Trap filters in Breweries
- CD / DVD media
