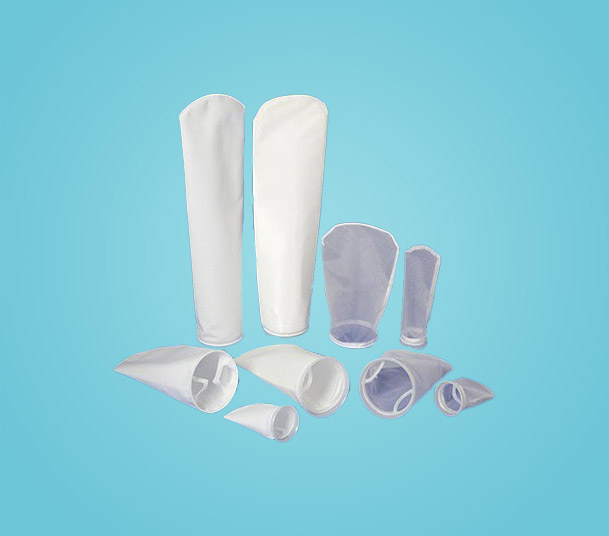

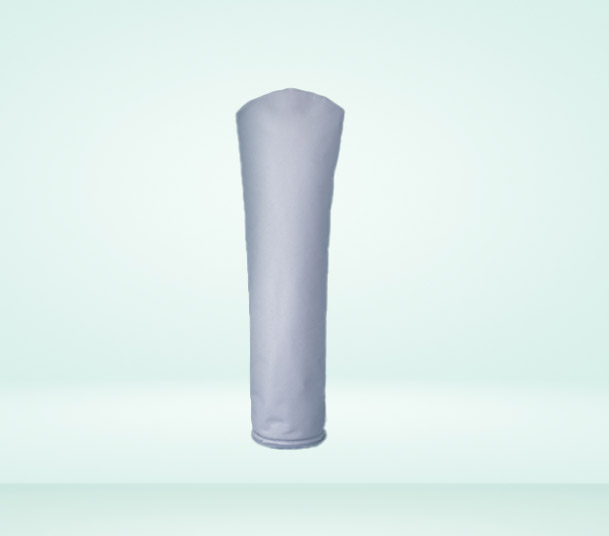

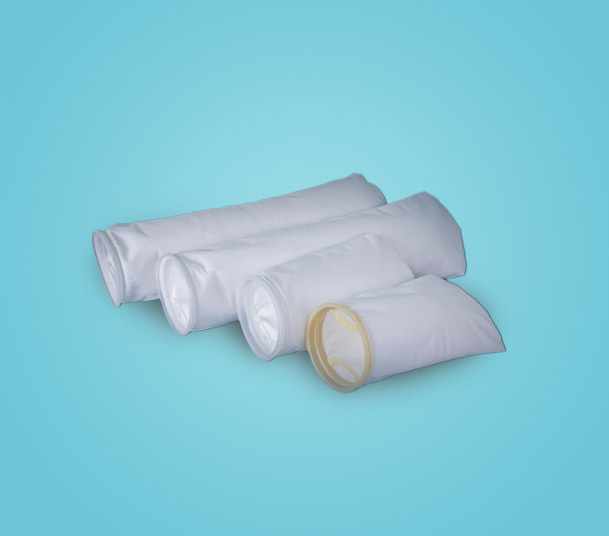

FLOW PURE SERIES BAG FILTER ELEMENTS

TRINITY Flow-Pure bag filter

TRINITY Flow-PURE

Liquid Bag filters

boast advanced felt media, catering to diverse customer needs. Offering three media types and various removal ratings, the Flow-PURE

Bag filter for PT/CED

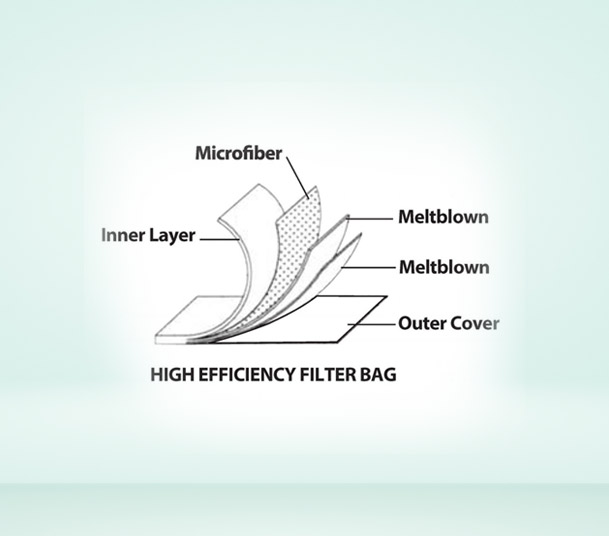

stands out in the market. Featuring fully welded Bag filter for PT/CED and three performance grades—Standard Liquid Grade, Standard Mesh Grade, and High-efficiency Grade— it's an optimal choice for any filtration application. This industrial Liquid Bag filters ensures reliability and versatility for industrial filtration needs.
Features:
  • Contaminants are trapped inside bag for Good Chemical Compatibility clearer results
  • Polypropylene felt is FDA compliant
  • Broad range of proprietary media provides
  • High Flow-Low Pressure drop Media excellent filtration performance and greater
  • Compacts for easy disposal consistency
  • Silicone free to prevent craters to provide
  • 9 Industrial Filter Housing Standard sizes better surface results
  • Offered with plastic and metal rings for wide
  • Glazed finish on the outside eliminates media
  • Temperature compatibility migration
  • All Welded (Size 1&2) or sewn construction
Flow-PURE Bag Filter Housing Specification:
Media Polypropylene Polyester Nylon mono Filament
Removal Ratings 0.5, 1, 2, 5, 10, 25, 50, 75, 100, 150, 200, 250 micron
O Rings / Gaskets(for SOE) Buna N, EPDM, Silicone, Viton
Dimension:
Lengths 16,32 inches
Diameter 4,7 inches
Max operating temperature PP - 80OC Polyester - 120 OC Nylon – 115 OC
Max Change Out Differential Pressure 20 PSID (3.5 bar)
Recommended Change out differential pressure 15 PSID (2.5 bar)
Applications :
  • RO Pre filtration
  • Plating Solutions
  • Petrochemicals
  • Edible Oils
  • Desalination
  • PT / CED / Inks
  • D l water
  • Water & Waste Water treatment
