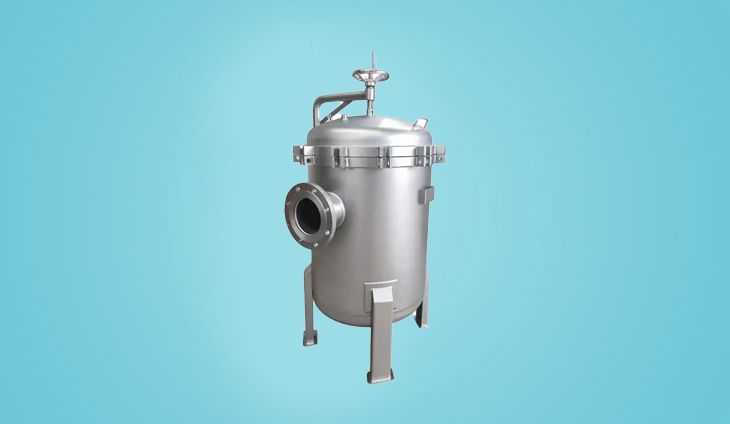

TRINITY Max-FLO Industrial Housings are designed and engineered to meet the critical needs of the manufacturing processes. These housings are manufactured using materials - SS 304, SS 316, SS 316L, SS 904L CS and CS with Rubber Lining / FRP Lining and are engineered to meet the requirements of the Industrial applications.
Fine filtration of fluids is a crucial part of many manufacturing processes and the quality of the housing plays a significant role in ensuring the predetermined filtrate quality. Trinity Max-FLO housings are designed to meet the many requirements of these demanding applications. During the design process, critical features of the housing are optimized to ensure operator-friendly usage, low installation and maintenance costs.
Features & Benefits
- CE, ASME Code stamp compliant Design for safety and durability
- Single, Multi round Cartridge, Duplex units expertly engineered for reliability and ease of use.
- Sure sealing covers with swing bolt closure design allows easy disassembly and faster cartridge filter replacement.
- Pressure Ratings up to 150 Bar or more
- Aqueous Flow rates up to 4500 GPM or more

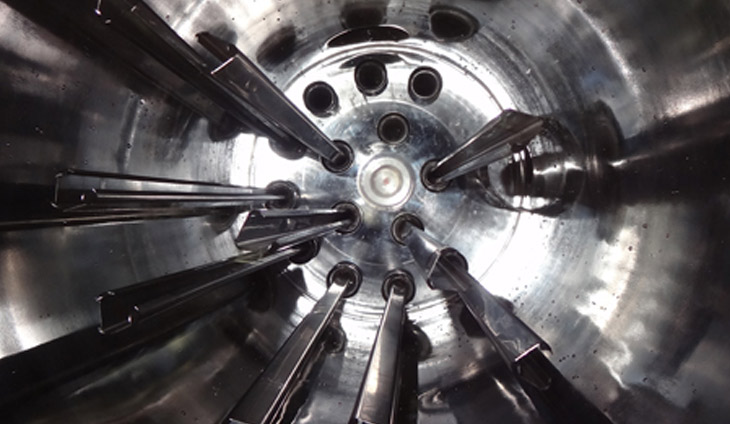

- Unique cup design to accommodate both Double open end (DOE) and 222-‘O’ ring style SOE cartridges without modification in the housing
Housing Specification
| MOC (available) |
SS 304/ SS 304L ; SS 316/ SS 316L, CS / CS with rubber lining ; GRP Duplex Steel, Monel®, Hastelloy ®. |
| Bolt for Top Body Cove |
Swing bolts (standard) Bolts / Studs (ASTM A 193 Gr B7) & Nuts (ASTM AA194 Gr 2H) available as optional |
| O-Ring |
Nitrile, Silicone, Viton, EDPM, EPR. |
| Gauge Connection |
Optional at extra cost |
| Vent & Drain Valve |
Optional at extra cost |
| Drain & Vent port |
Standard accessories for all Housings |
| Cartridge Sizes |
9.75" to 40" Long |
Applications
- Condensate Polishing
- Waste water
- Desalination
- Pre RO application
- CED & Top coat
- Paints, Resins, Inks
- Lube Oils / Coolants
- Oil well Injection
- Refinery & Petrochemicals
- Electronic
