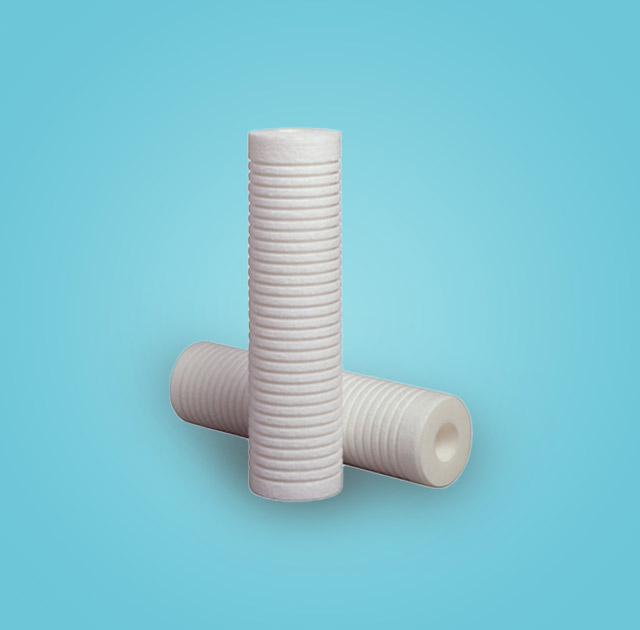

Trinity Spun BOND Grooved Filter
is created to deliver consistent performance over a wide range of applications.
The
Spun BOND Grooved Filter
has a large surface area because of the grooves throughout its length. The filter is constructed from polypropylene fibers which solve the problem of chemical compatibility throughout its life. Trinity Spun BOND Grooved Filters significantly reduces the filtration cost because it requires lesser switching even in the enhanced flow rates. Dirt particles don’t unload down the stream making it an ideal filter.
Features and Benefits
- 100 % Polypropylene Filters provides excellent chemical compatibility with a variety of process fluids and applications.
- Graded pore construction provides optimum particle retention and prevents media migration, ensuring consistent filtration performance
- Spun BOND Grooved Filter are Free of binders, additives and lubricants
- Low pressure drop, high dirt holding capacity and long service life
- Spun BOND Grooved Filter is Manufactured by FDA grade polypropylene resin.
Specification:
Media |
Micro Polypropylene Fibers |
Core |
Reinforced Polypropylene |
End Caps |
Reinforced Polypropylene |
Removal Ratings |
0.1, 0.5, 1, 3, 5, 10, 25, 50, 75 micron |
Dimensions
Inside Diameter |
1.1” (28 mm) |
Outside Diameter |
2.5” (64 mm) |
Length |
9.75”, 10”, 20”, 30”, 40” |
Operating Conditions
Maximum Operating Temperature |
800C |
Maximum Operating Pressure |
60 PSID (4 bar @ 25 OC) |
Recommended Change out Differential Pressure |
35 PSID |
