STERI-PRO PV SERIES PVDF MEMBRANE FILTERS

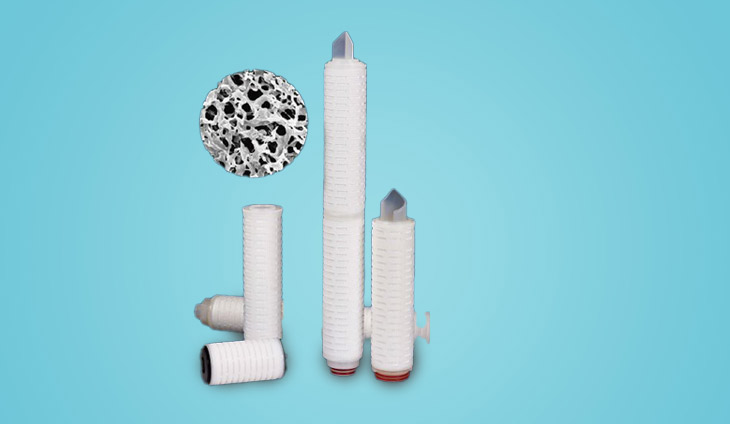

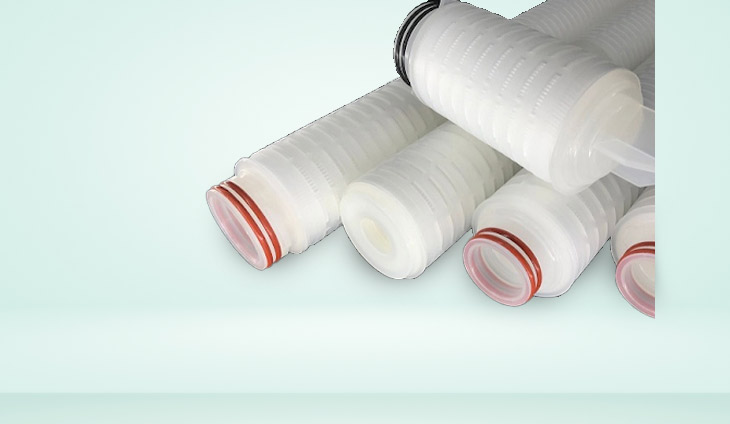

Trinity Steri-PRO PV series

PVDF Membrane Filters

employ high porosity PVDF Sterile Filters, catering to applications requiring high flow rates. These PVDF Sterile Filters efficiently remove bacteria and unwanted particles, offering superior filtration. With PVDF Membrane Filters, users benefit from broad chemical compatibility, low extractable levels, and high chemical inertness. These

PVDF Sterile Filters

excel in bulk material filtration applications, surpassing similar products in performance. These feature single and double-layer PVDF, supported by a polypropylene core, ensuring compliance with CFR 21 and FDA regulations, making them ideal for food and pharmaceutical applications.

PVDF Sterile Filters are engineered with high porosity PVDF membrane to address high flow rate applications effectively. These Filters excel in removing bacteria and undesirable particles with exceptional efficiency, providing reliable filtration solutions. With these filters, users can enjoy broad chemical compatibility, minimal extractable levels, and superior chemical inertness. These PVDF Filters are specially designed for bulk material filtration applications, delivering superior performance compared to similar products. Featuring single and double-layer PVDF, supported by a polypropylene core, they meet CFR 21 and FDA standards, making them suitable for food and pharmaceutical applications.

Features & Benefits:
  • Designed for longer service life.
  • Can sustain High flow rates.
  • Effectively reduce the operating and replacement costs of filtration system.
  • Reduce the downtime in many applications.
  • Manufactured, tested and packaged in a cleanroom
  • Provide broad chemical compatibility
  • Low protein binding
  • Effectively reduce the operating and replacement costs of filtration system.
Filter Specification:
Media Single layer PVDF membrane Double layer PVDF membrane
Support media Polypropylene
Cage /End Caps Polypropylene
Core Polypropylene Polyester
Adaptor Polypropylene
Gasket /‘O’ rings Silicon, EPDM, Viton, NBR, Teflon Encapsulated Viton, Teflon, Encapsulated Silicone
Dimensions
Nominal Lengths 5,10,20,30,40 inches
Outside Diameter 2.7” (68.5 mm)
Inside Diameter 1.3” (33 mm)
Filtration Area ≥ 0.62 m2 (Single Layer)
≥ 0.55 m2 (Double layer)
Operating Conditions
Max.Diff.Pressure 5.2 bar (forward) / 2.1 bar (reverse) – at 25o C
Max Temperature 82°C @ 1.7 Bar
Autoclave 124°C, 30min, 30 cycles / 134°C, 30min, 20 cycles
Steam In-Place 124°C, 30min, 30 cycles / 134°C, 30min, 20 cycles (Pressure Drop ≤ 0.5 bar)
Features & Benefits:
  • Fine Chemicals and Pharmaceuticals
  • Biological Fluids & Oral Drugs
  • Ophthalmic Liquids
  • Gelatins
  • Beverages
  • Wine & Alcohols
  • De-ionized Water Pre-filtration
  • Photo resists
