SELF CLEANING FILTERS

SELF CLEANING FILTERS

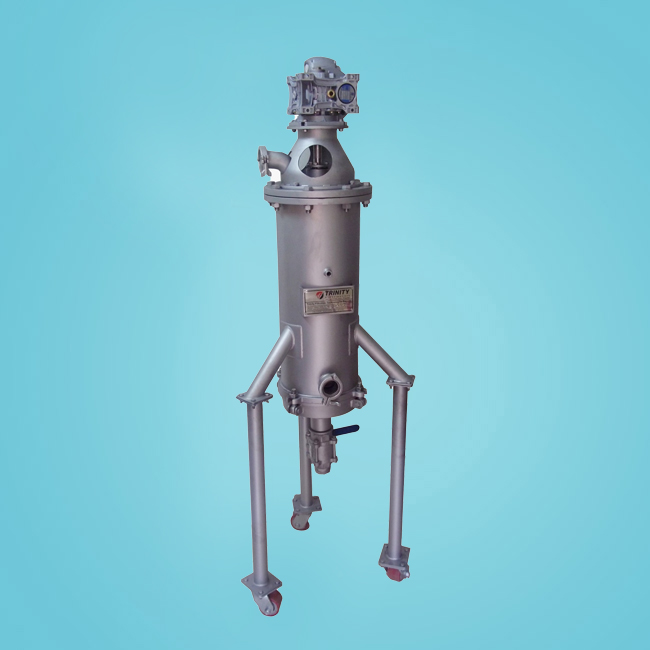

TRINITY Self Cleaning Filter systems are designed for a variety of liquid process applications. The filter system consists of a cylindrical, cleanable filter that rotates against the stationery cleaning knife trapping the particles larger than the opening to be retained and eventually scraped off the element (during cleaning). This system is automatic and needs no worker even to supervise it. The retained particles are collected at the bottom and thrown out of the system from time to time.

  •  Continuous, operator independent operation.
  •  No need for disposable filter cartridges thereby reducing the cost of replacement elements, change-out labor, and downtime.
  •  No Operator exposure, hence no health hazards.
  •  Unique welded wedge wire type mesh, strong, rugged and durable.
  •  Higher percentage of open area provides significantly higher flow throughput, lower pressure drops.
  •  Removal Ratings: 15 to 500 Micron.
  •  Optional PLC based Panels/ Flame Proof Motor.
Applications :
Automotive : Automotive Pre Treatment
Food & Beverage : Chewing gum base, Chocolate, Sauces, Corn Syrup, Juices, Candy, Cooking oil.
Inks And Coatings : Solvents, Water, Paint, Clear coat, Inks, Industrial Water, Lacquers. Wax, Varnish, Adhesives.
Cosmetics : Toothpaste, Lotions, Soaps, Mouthwash, Mineral oils.
Chemical Processing : Lube oil, Grease, Wax, Paraffin, Petrochemicals, Fuel oil, Catalyst Recovery.
Oil And Gas : Crude oil, Drilling fluids, Completion fluids, Catalyst Recovery.
Metal Finishing : Machine coolants, Plating solutions, Stripping solutions, hydraulic press oil.
Recycling : Automotive oil, Anti-freeze, Hydraulic oil.
