Innovative blanketed media cartridges delivering superior flow rates and consistent efficiency.

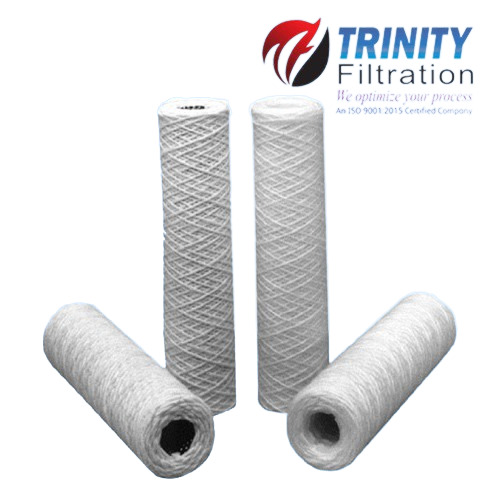

Trinity Micro-STRING series Blanket Media Filter Cartridge is a major innovation in blanketed filter technology. It combines an enhanced open wind process with an internal media blanket. This provides superior flow rates, greater filtration efficiency and consistent filter performance from batch to batch.
| Filter Media | Polypropylene, Cotton media blanket |
| Core | Polypropylene, SS 304, SS 316 |
| End Connection | DOE, SOE (optional) |
| Micron Rating | 0.5 1 3 5 10 25 50 75 100 |
| Inner Diameter | 1 inch (25 mm) |
| Outer Diameter | 2.4 inch (61 mm) |
| Nominal Length | 250, 500, 750, 1000 mm |
| Max Operating Temp | 80°C (PP), 120°C (cotton) |
| Recommended Changeout DP | 35 PSID |
| Max Changeout DP | 50 PSID |
Direct technical guidance and factory pricing for your filtration requirements.
