SPUN BOND DEPTH FILTER CARTRIDGES
Trinity spun bond depth filters are created from 100% Polypropylene with no additives or surfactants used that can cause foaming or other undesirable effects to the filtrate quality.
SPUN BOND DEPTH FILTER CARTRIDGES
Trinity spun bond depth filters are created from 100% Polypropylene with no additives or surfactants used that can cause foaming or other undesirable effects to the filtrate quality.

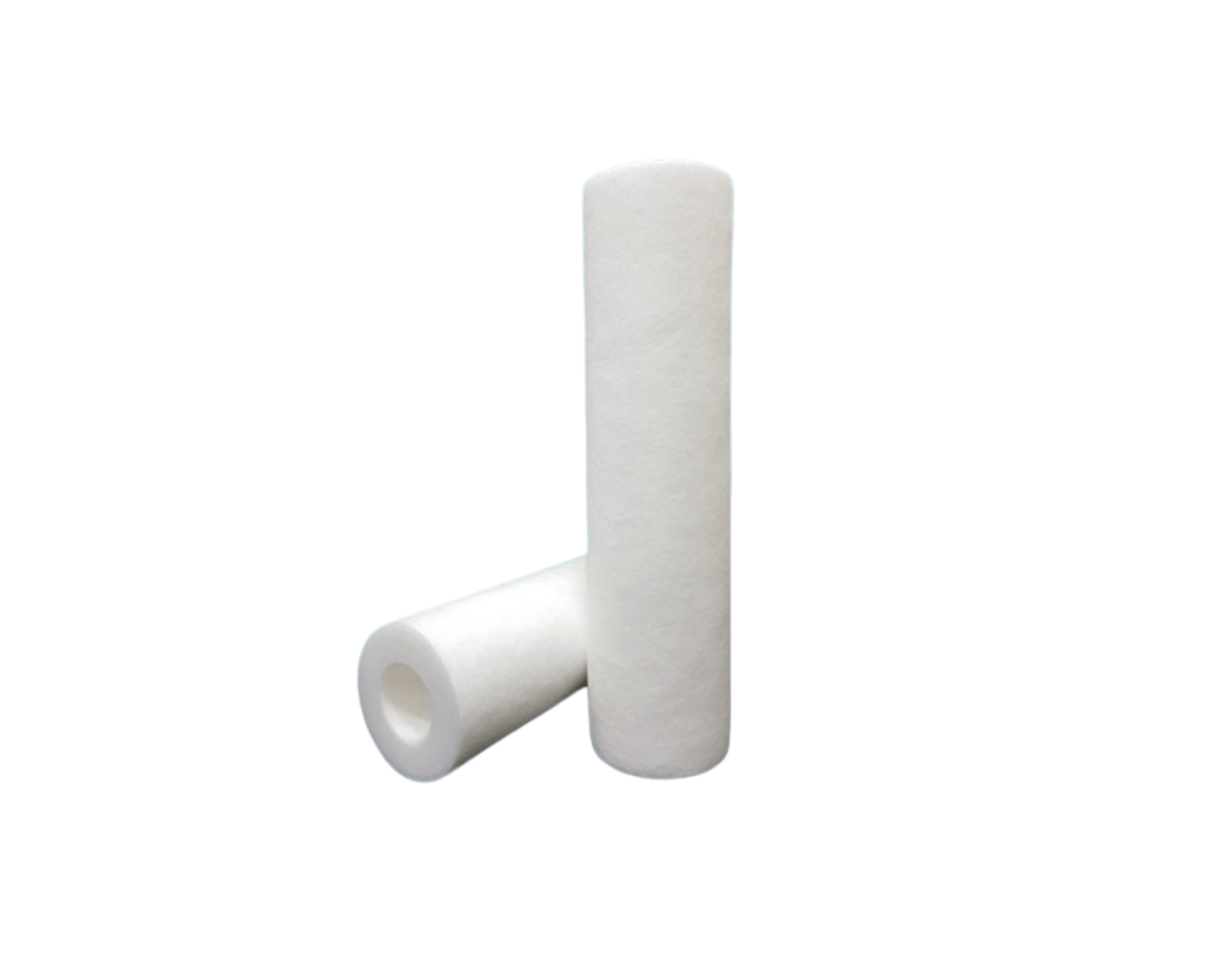

Spun-BOND Depth Filter Cartridges
TRINITY Spun BOND Depth Filters are created from 100% Polypropylene with no additives or surfactants used that can cause foaming or other undesirable effects to the filtrate quality. With the true graded density construction, these Spun BOND Depth Filters are capable of high dirt loading capacity. The Spun Bond Depth filter Cartridges are a perfect choice where economy and efficiency are critical.
Features & Benefits :
SPUN BOND DEPTH FILTER CARTRIDGES
Filter Specification
| Property | Details |
|---|---|
| Media | Polypropylene, Cotton |
| Structure | Coreless |
| End Caps | Polypropylene (PP) |
| Removal Ratings | 0.5, 1, 3, 5, 10, 25, 50, 100 Micron |
| End Connection | DOE or SOE |
| O-Rings / Gaskets (SOE) | Buna-N, EPDM, Silicone, Viton |
Dimensions
| Property | Details |
|---|---|
| Nominal Lengths | 9.75", 10", 20", 30", 40" |
| Diameter (ID / OD) | 1.1" (28 mm) / 2.5" (63 mm) |
| End Connections | DOE (Standard) / SOE (Optional) |
| Maximum Operating Temperature | 80°C |
| Maximum Change-Out Differential Pressure | 35 PSID |
