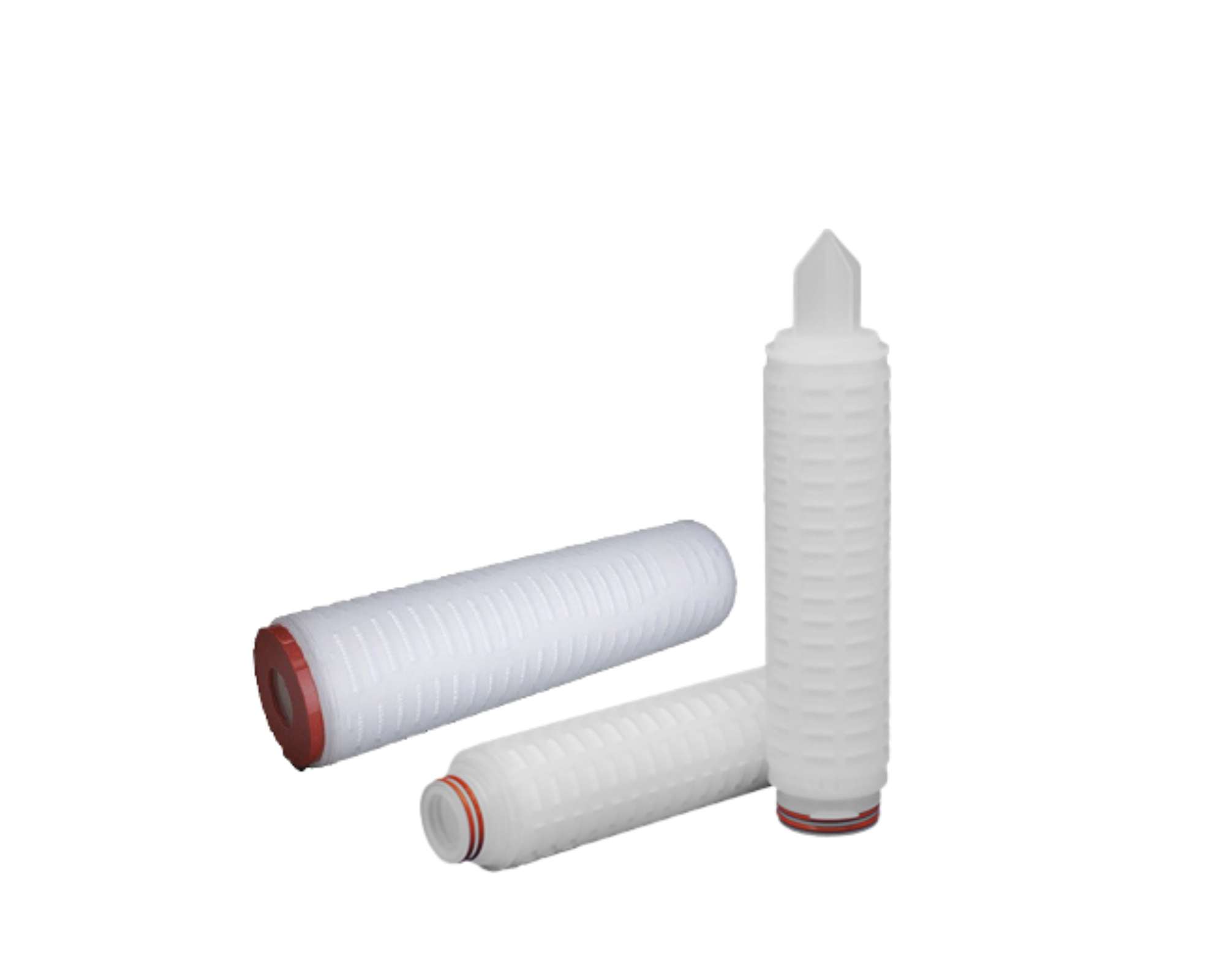

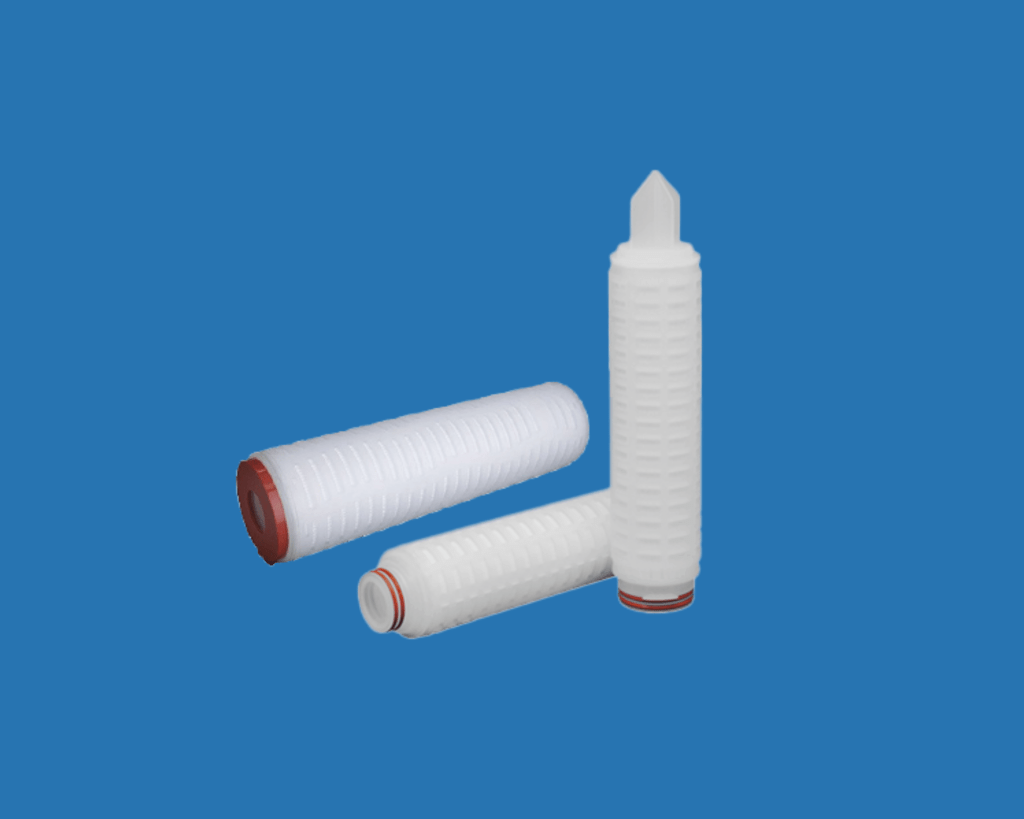

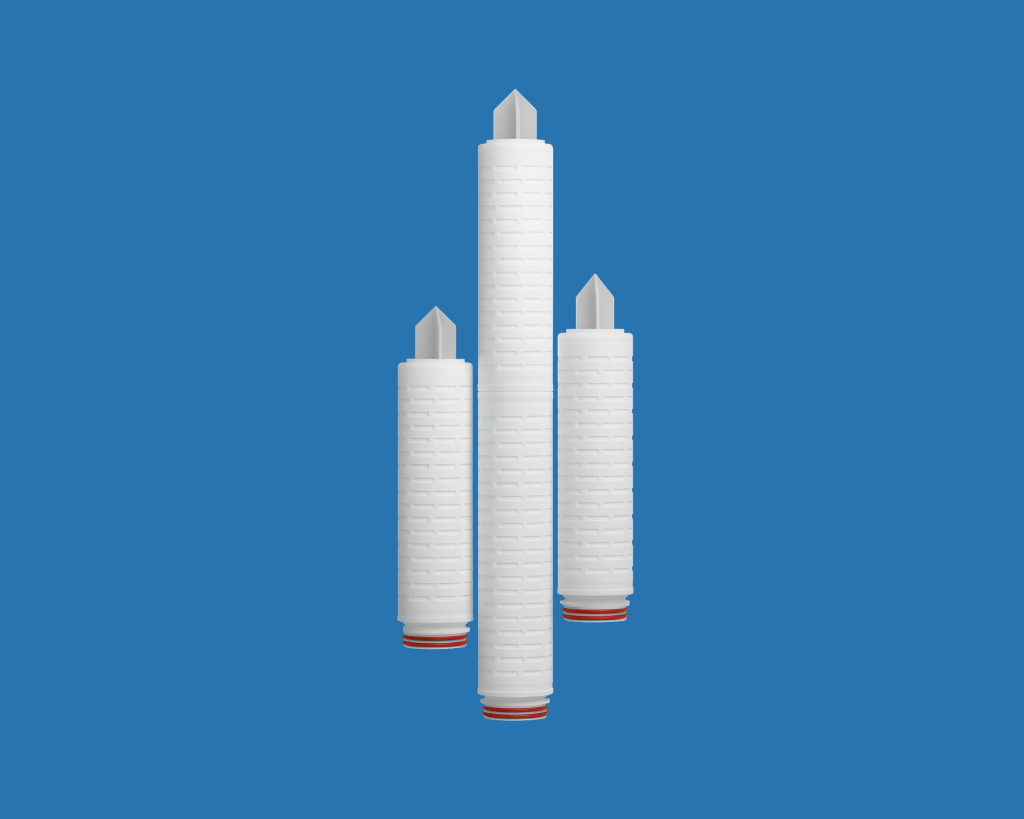

PP Pleated Filter Cartridges
High-performance PP Pleated Filter Cartridges deliver superior particle retention, high flow rates, and excellent chemical compatibility.
PP Pleated Filter Cartridges
High-performance PP Pleated Filter Cartridges deliver superior particle retention, high flow rates, and excellent chemical compatibility.
TRINITY Flow-MAX PP pleated filter cartridges are designed to optimize the surface area of the PP media for higher flow rate, lower clean Delta P and longer Service life. The PP pleated filters provides more surface area due to its pleated design.
Applications for PP pleated filters are available across food & beverages, pharmaceutical, semiconductor and other demanding process applications. All PP pleated filter cartridges construction and gradient density micro-fiber media provide excellent removal efficiencies and high contaminant holding capacities. All materials used in PP pleated filters and PP pleated filter cartridges are CFR-21 complaint so, it is safe to use for food contact purposes.
Features & Benefits :
Filter Specification
| Media | Polypropylene (PP) |
|---|---|
| Inner Core | Polypropylene (PP) |
| End Caps | Polypropylene (PP) |
| Cage | Polypropylene (PP) |
| Removal Ratings | 0.2, 0.45, 1, 2.5, 5, 10, 20, 25, 40, 50, 100 Micron |
| O-Rings / Gaskets (SOE) | Buna-N, EPDM, Silicone, Viton, Teflon Encapsulated Viton O-Rings |
Dimensions & Operating Specifications
| Nominal Lengths | 9.75", 10", 20", 30", 40" |
|---|---|
| Diameter (ID / OD) | 1.1" (28 mm) / 2.7" (70 mm) |
| End Connections | DOE (Standard) / SOE (Optional) |
| Maximum Operating Temperature | 80°C |
| Maximum Change-Out Differential Pressure | 75 PSID (5.2 bar @ 21°C); 40 PSID (2.8 bar @ 80°C) |
| Recommended Change-Out Differential Pressure | 35 PSID |
