Industrial online and offline oil filtration systems for machinery reliability.

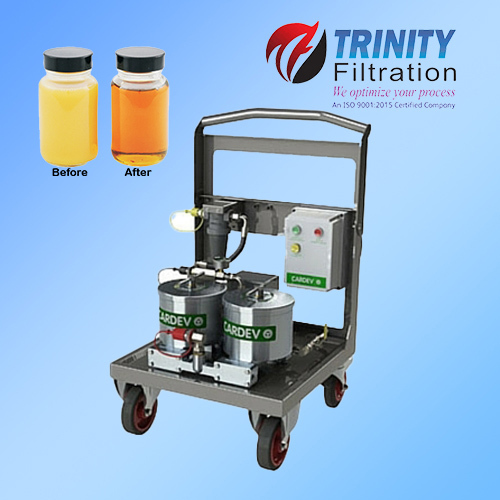

TRINITY OIL PURIFICATION SYSTEMS can be used directly as an ON-LINE or OFF-LINE system depending on your shop-floor need. Trinity Oil Purification Systems allows filtration to take place independently of your equipment/machinery operation and there is no need for permanent installation per machine as one trolley/skid-mounted unit can service multiple machines. Trinity Oil Purification Systems are used for filtration of Lube Oils, Hydraulic Oil, Machine Cutting Fluids, Coolants, transformer oil, gearbox oil, engine oil, etc. Trinity Oil Purification System can even filter water-based fluids (water glycols, metal-working fluids, wash fluids), removing any contamination from the fluid. These systems can be automated systems with Self- Priming Pumps, Pressure Gauges, Interconnecting Piping and provision for testing / measuring devices like Particle detectors, Moisture Sensors, Particle Counter, etc.
| Type I: Particulate Filtration | |
|---|---|
| Stage 1 | Pure-BOND Resin Bonded Filter Cartridge, 5 micron, Max-FLO Series Industrial Housing |
| Stage 2 | Pure-BOND Resin Bonded Filter Cartridge, 1 micron, Max-FLO Series Industrial Housing |
| Flow Rates (Type I) | 4, 12, 25, 50, 100 LPM |
| Instrumentation | Optional |
| Type II: Super-Clean Oil Filtration Systems (NAS Standard) | |
| Stage 1 | Flow-PURE High Efficiency Bag Element, 1 micron, with Max-FLO Series Bag Filter Housing |
| Stage 2 | Flow-MAX Pleated Filter Cartridge, 4 micron, with Max-FLO Series Industrial Housing |
| Stage 3 | Flow-MAX Pleated Filter Cartridge, 2 micron, with Max-FLO Series Industrial Housing |
| Flow Rates (Type II) | 25, 50, 100, 150, 200 LPM |
| Instrumentation | Optional |
| Type III: CARDEV® Moisture/Water Removal System | |
| Stage 1 | Pure-BOND Resin Bonded Filter Cartridge, 5 micron OR Flow-MAX PP Pleated Filter Cartridge, 5 micron, with Max-FLO Series Industrial Housing |
| Stage 2 | Super Duty Filter Cartridge (SDFC) with CARDEV® Filter Housing |
| SDFC Dimensions & Weight | Height: 112 mm • Diameter: 195 mm • Weight: 1000 ±5% g |
| Flow Rates (Type III) | 4, 8, 16, 32 LPM |
| Instrumentation | Optional |
Our filtration application engineers work directly with your plant specifications to size the ideal filter media, micron rating, and vessel configurations.
